AR-Lok Structural Rivet - Steel body / Steel mandrel
Product Code: SMAG8/10E
Min Grip Range (mm): 2
Max Grip Range (mm): 15.9
Shear N: 10690
Tensile N: 9200
Body Mat: Steel
Mandrel Mat: Steel
Hole: 6.6 - 6.9 mm

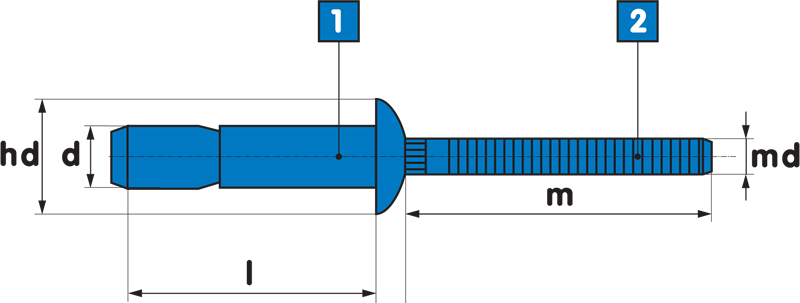

hd: 13.0 +/ 0.35mm
d: 6.4+/ 0.11mm
l: 35.7mm
m: 29mm
md: 4.0mm
